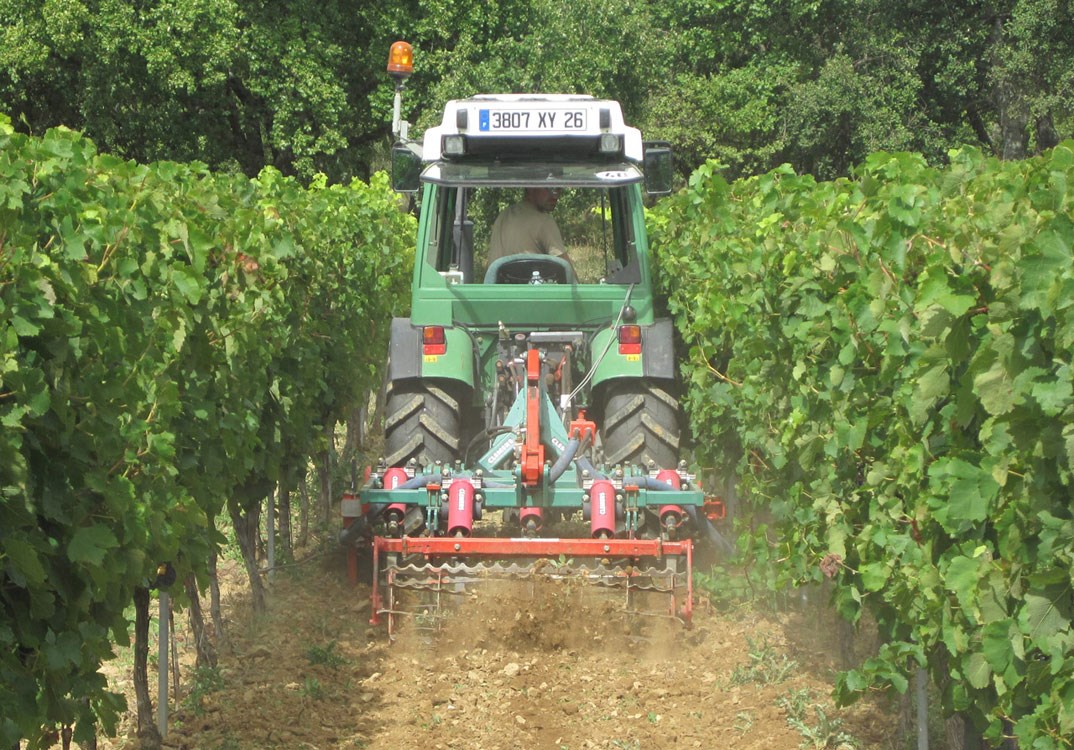

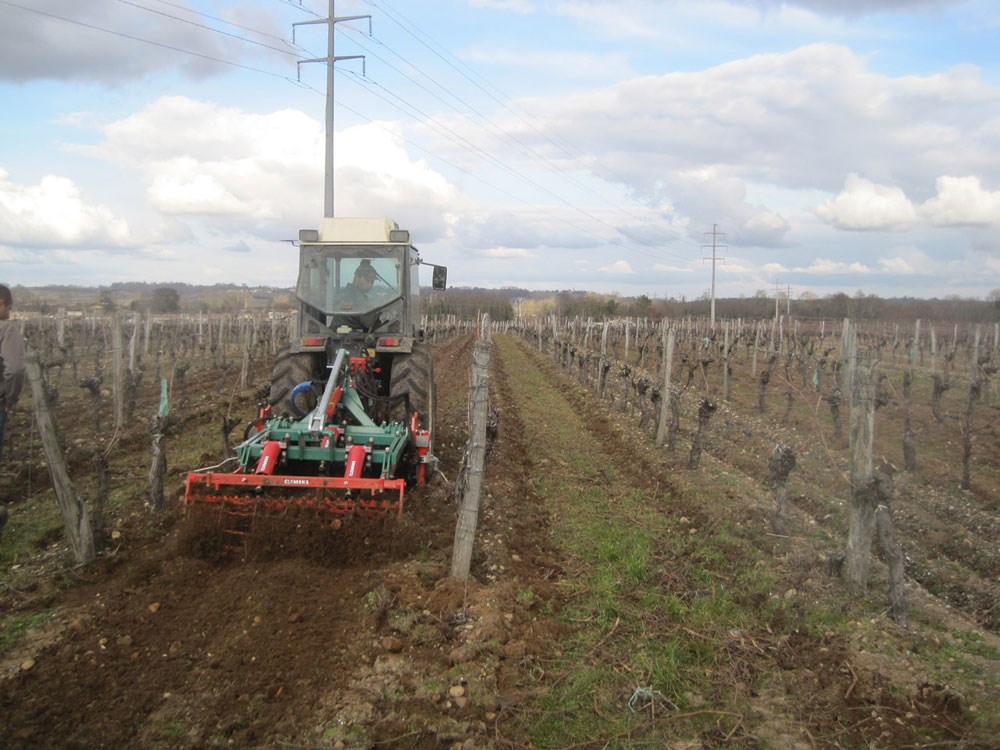

THE CLEMENS TERACTIV DUO CULTIVATOR IS IDEAL FOR USE IN BOTH OPEN AND GREEN ROWS.

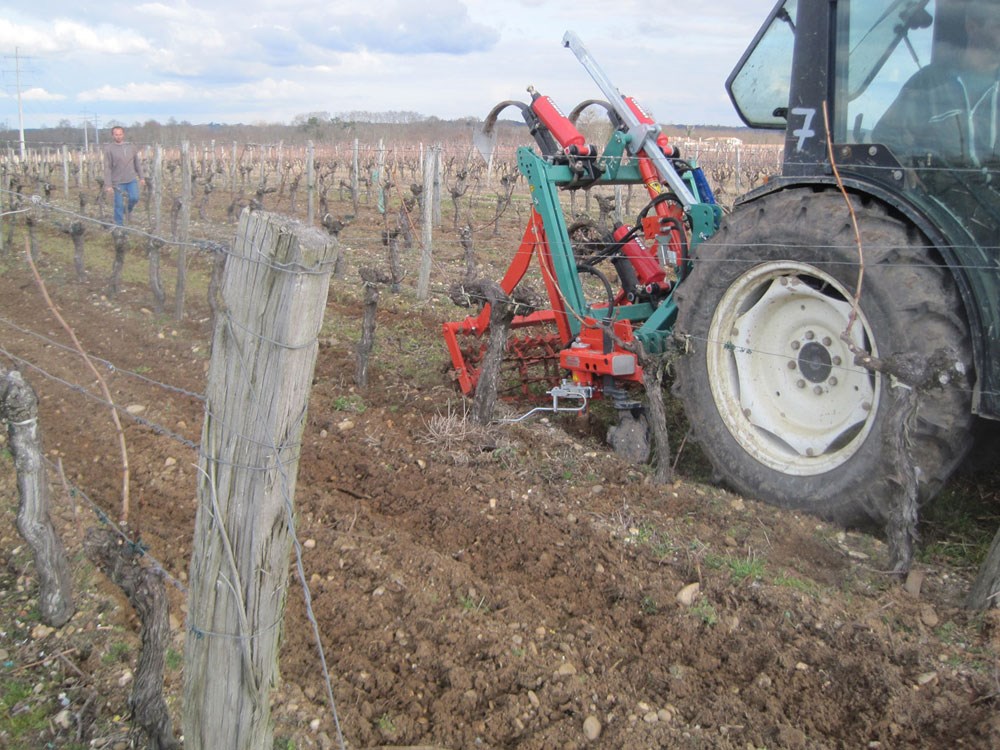

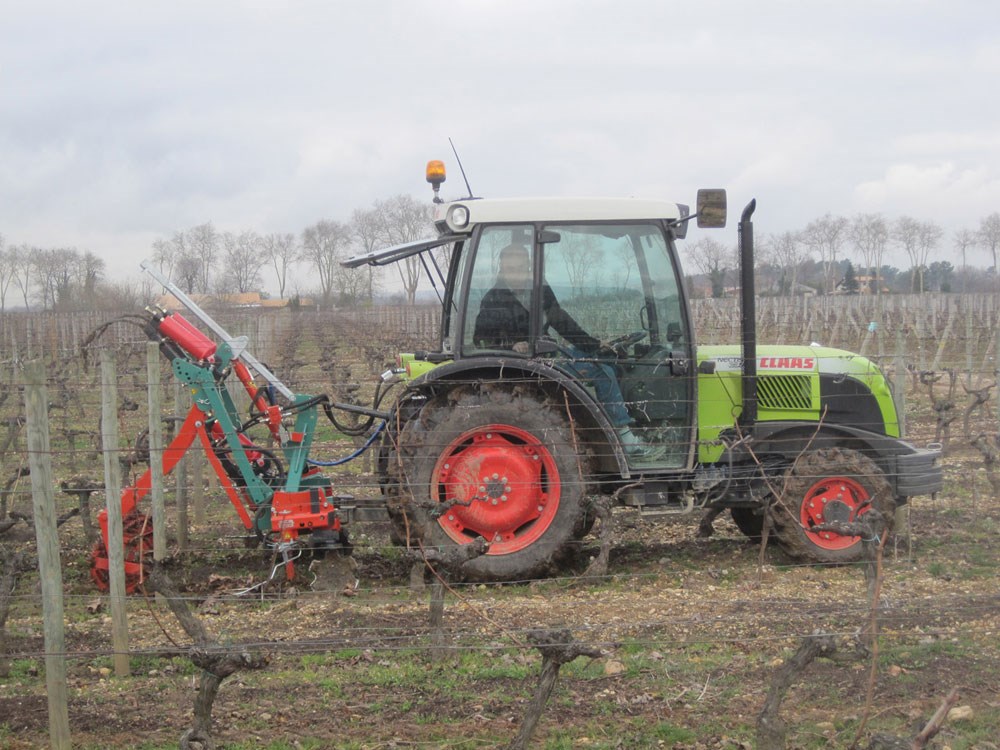

With the TERACTIV DUO, you have the option of cultivating either the entire row or just the area around the vine in a green row. To make this possible, the frame with its flexible tines lifts through at an angle of 75 degrees and the roller folds under. This stabilises the frame when working in the area between vines, as it rests on the grass track. This allows it to move smoothly and maintains a consistent working depth in the area around the vines. The width of the stable frame can be adjusted from 1,100 mm to 1,600 mm (models that can extend to 2,100 mm are also available). The frame on which the Radius machine works between the vines is mounted and can be adjusted hydraulically. You have the option of fitting the frame with 3, 5, 6 or 7 flexible tines, depending on the width of the frame and how loose you want the soil.

Advantages:

  • less time required for changing tools
  • steep-lift up to 75 °
  • optional hydraulic width adjustment for inter-vine machine

TALK TO A SALESPERSON

This field is required
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.
reCAPTCHA is required

For more information on how we collect, hold, use and disclose personal information, please see our privacy policy.

Model Specifications


Weight: approx. 310 kg Frame adjustment: 1,070 - 1,620 mm
Machine length: approx. 2,350 mm* Lubricating grease: sulfur-free grease
Machine width: approx. 1,310 mm* Oil pressure: 175 bar
Machine height: approx. 1,250 mm* Hydraulic line: NW-8
Width between rows: 1,800 to 2,300 mm**

* measured from the outside edge of the bar in retracted position

** fitted with Radius equipment and 370 shares
