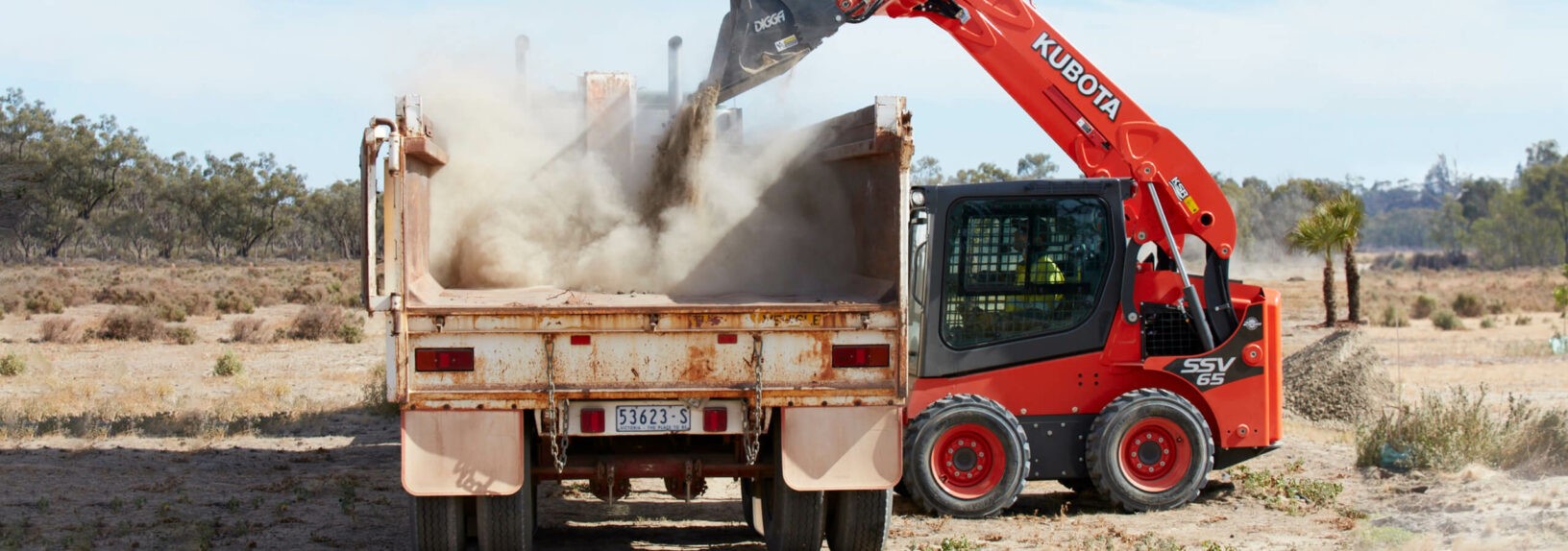

The SSV ISO Pilot controlled machine is powered by a 64-74.3HP Kubota engine and boasts exceptional bucket breakout force. Featuring Kubota’s unique vertical lift design, to deliver exceptional reach with high hinge pin height for easy dumping into trucks and other lifting tasks.
For more information on how we collect, hold, use and disclose personal information, please see our privacy policy.
Engine
| Name | SSV65 ISO | SSV75 ISO |
|---|---|---|
| Engine Type | Tier 4 Emission Level | Tier 4 Emission Level |
| Fuel Type | Diesel | Diesel |
| Cylinders | 4 | 4 |
| Engine Model | Kubota V2607-CR-TE4 | Kubota V3307-CR-TE4 |
| Engine Net | 61.3 HP | 71.6 HP |
| Engine Gross | 64 HP | 74.3 HP |
| Displacement | 2,615 cc | 3,331 cc |
| Rated Speed | 2,700 rpm | 2,600 rpm |
Dimensions
| Name | SSV65 ISO | SSV75 ISO |
|---|---|---|
| Length | 2,700 mm | 2,920 mm |
| Width | 1,689 mm | 1,823 mm |
| Height | 2,029 mm | 2,065 mm |
| Operating Weight - Cab | 3,200 kg | 3,820 kg |
| Operating Weight - Open Cab | 3,220 kg | 3,740 kg |
