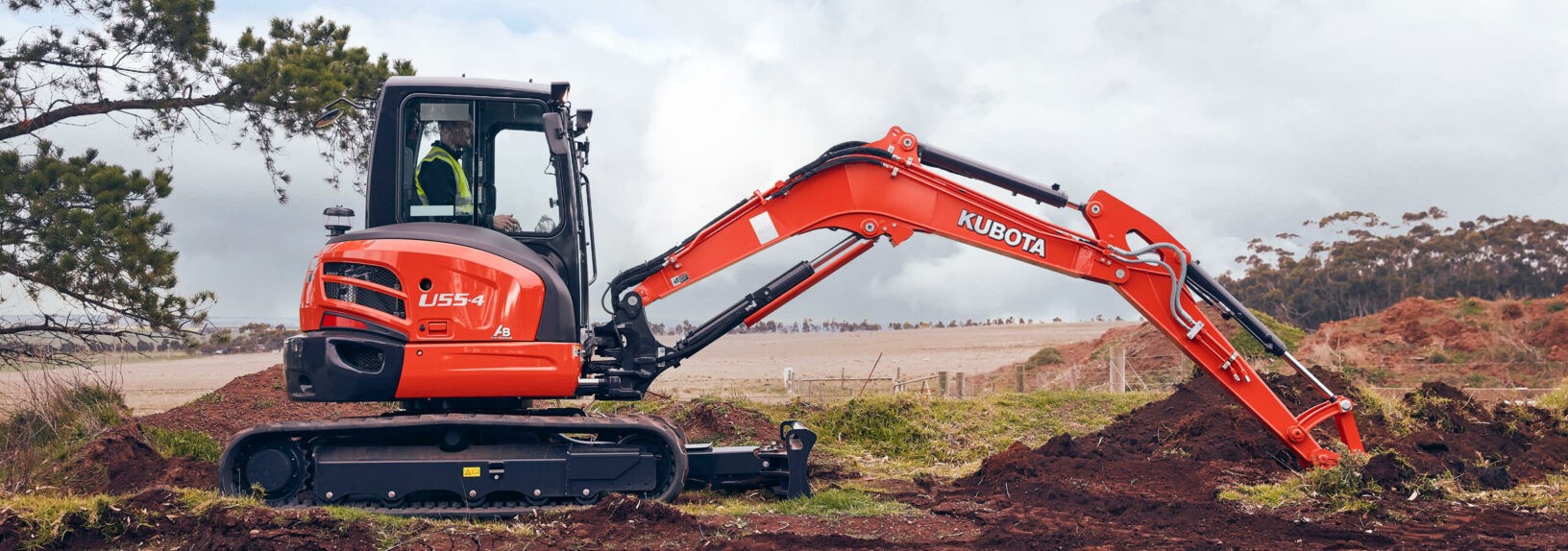

Powered by a reliable Kubota 47.6HP engine, the Kubota U55-4 features a compact and well balanced design, combining exceptional power and the versatility to tackle any job and working condition with ease.

TALK TO A SALESPERSON

This field is required
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.
reCAPTCHA is required

For more information on how we collect, hold, use and disclose personal information, please see our privacy policy.

Model Specifications


Engine

Name U55-4 U55-4 Angle Blade
Engine Type Interim Tier 4 Emission Level Interim Tier 4 Emission Level
Fuel Type Diesel Diesel
Cylinders 4 4
Engine Model Kubota V2607-DI Kubota V2607-DI
Engine Net 45.4 HP 45.4 HP
Engine Gross 47.6 HP 47.6 HP
Displacement 2,615 cc 2,615 cc
Rated Speed 2,200 rpm 2,200 rpm



Dimensions

Name U55-4 U55-4 Angle Blade
Length 5,500 mm 5,500 mm
Width 1,960 mm 1,960 mm
Height - Canopy 2,550 mm 2,550 mm
Height - Cab 2,550 mm 2,550 mm
Min. Ground Clearance 310 mm 310 mm
Operating Weight - Canopy 5,380 kg 5,570 kg
Operating Weight - Cab 5,470 kg 5,660 kg
