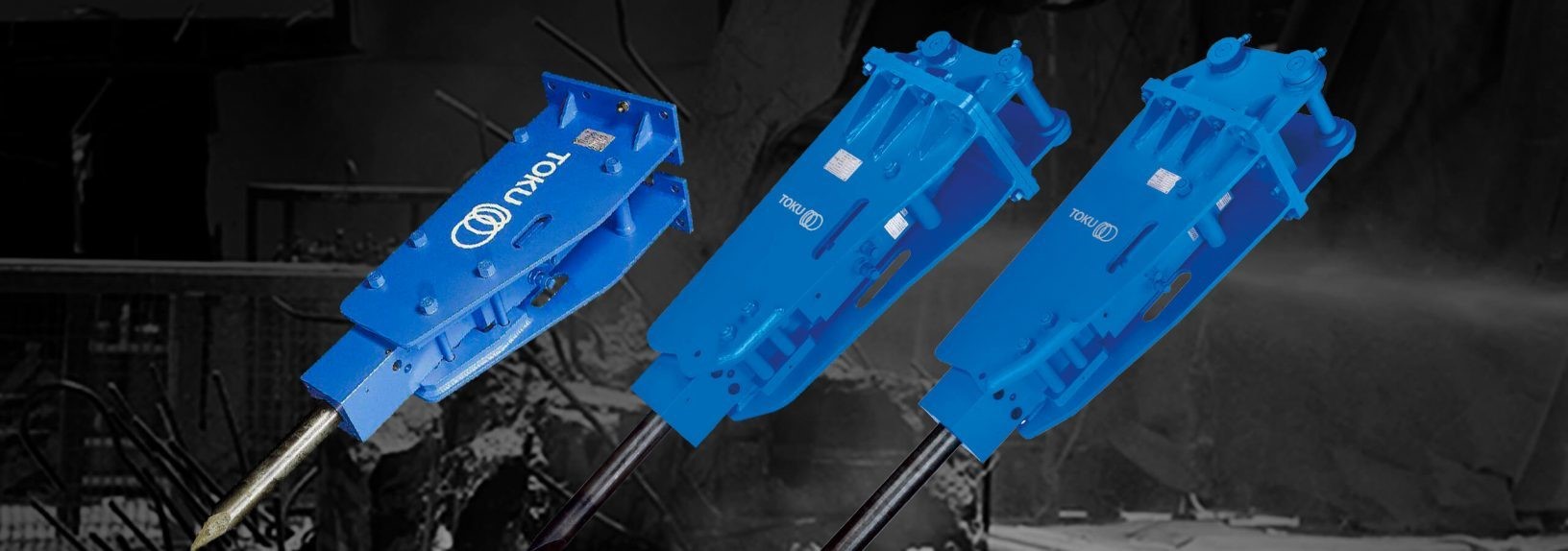

While they are compact in design, Toku’s TNB Mini series packs a punch with impressive impact rate and force. Suited to a variety of applications including small trenching, road construction and landscaping, the Toku TNB Mini series has the versatility and performance you need when tackling any hammer job.

Kubota_Toku-Mini-Hammers

First Name*

This field is required

Last Name*

This field is required

Phone Number*

This field is required Not a valid number!

Email Address*

This field is required This is not a valid email.

Questions/Comments

reCAPTCHA is required

For more information on how we collect, hold, use and disclose personal information, please see our privacy policy.

Toku Mini Hammers GALLERY

Click on the images below to enlarge.

Working Weight

Name	TNB-08M	TNB-1M	TNB-2M	TNB-3M	TNB-4M	TNB-5M
Working Weight - Top Mount Type	75 kg	100 kg	140 kg	210 kg	255 kg	315 kg
Working Weight - Box Type	85 kg	125 kg	170 kg	250 kg	340 kg	400 kg

Dimensions

Name	TNB-08M	TNB-1M	TNB-2M	TNB-3M	TNB-4M	TNB-5M
Width	280 mm	280 mm	290 mm	310 mm	310 mm	330 mm
Height	1,106 mm	950 mm	1,215 mm	1,370 mm	1,500 mm	1,571 mm
Tool Diameter	40 mm	45 mm	50 mm	58 mm	64 mm	75 mm
Tool Length	450 mm	470 mm	495 mm	590 mm	640 mm	710 mm
Min. Carrier Range	0.7 ton	0.7 ton	1.5 ton	2.4 ton	3 ton	3.8 ton
Max. Carrier Range	1.5 ton	1.5 ton	2.5 ton	4 ton	4.5 ton	6 ton
