Ideal for a variety of applications ranging from tunneling, foundation work, road construction and open pit mining work, Toku’s medium hydraulic hammer range offers outstanding versatility and performance that you can rely on.

First Name*

This field is required

Last Name*

This field is required

Phone Number*

This field is required Not a valid number!

Email Address*

This field is required This is not a valid email.

Questions/Comments

reCAPTCHA is required

For more information on how we collect, hold, use and disclose personal information, please see our privacy policy.

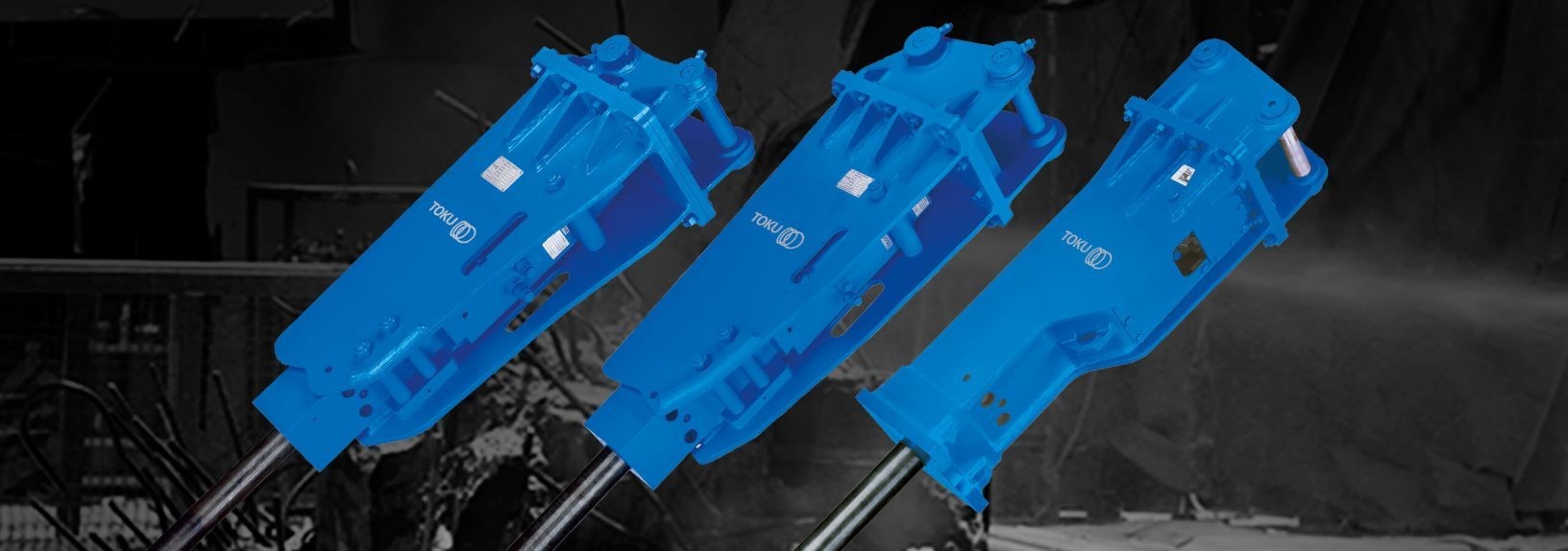

Toku Medium Hammers GALLERY

Click on the images below to enlarge.

Working Weight

Name	TNB-6M	TNB-6E	TNB-7J	TNB-110	TNB-151LU2
Working Weight - Top Mount Type	350 kg	465 kg	✗	✗	✗
Working Weight - Box Type	440 kg	585 kg	950 kg	1,240 kg	1,800 kg

Dimensions

Name	TNB-6M	TNB-6E	TNB-7J	TNB-110	TNB-151LU2
Width	350 mm	380 mm	510 mm	490 mm
Height	1,595 mm	1,697 mm	1,878 mm	2,139 mm	1,230 mm
Tool Diameter	75 mm	95 mm	105 mm	115 mm	135 mm
Tool Length	710 mm	800 mm	1,050 mm	930 mm	1,230 mm
Min. Carrier Range	5.5 ton	6 ton	8 ton	14 ton	18 ton
Max. Carrier Range	8 ton	11 ton	14 ton	20 ton	25 ton
